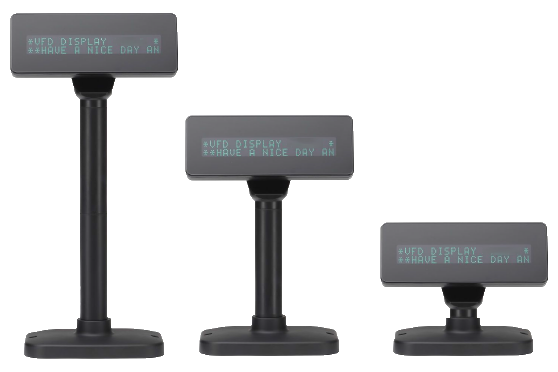

DSP-V9 Series
90mm Character High
VFD Customer Display
A Smart and Powerful Customer Display that Not only Looks Good
1. 90mm character high and Japan-made VFD tube
In an increasely competitive market, Birch releases the DSP-V9 customer display
with Japan-made VFD tube supports 90mm character high,
and with performance features to support your business.
2. A fresh sense of glamour
DSP-V9 customer display features a fresh glamour and modernity in its design.
The true-flat design display screen and excellent base design bring a sense of contemporary feeling.
3. Blessed with powerful capabilities
DSP-V9 customer display supports big characters
( 5 x 7 dot matrix character font, 9.03(H) x 5.25(W)mm high, 0.85 x 1.05mm dot size )
and powerful function as below :
a. Support 11 command modes which includes Epson
b. Support 5V-24V at the same model
c. Support OPOS/JPOS as standard
4. Durability and Unrivalled Convenience
a. The display of DSP-V9 is viewing angle changeable
b. DSP-V9 support multiple languages
c. MTBF hours: 30,000 hrs.
Ordering Information :
DSP-V9BU: 20 x 2 line VFD customer display, USB ( VirtualCOM)
DSP-V9BR: 20 x 2 line VFD customer display, RS232
●General:
Display method:
Vacuum fluorescent display (VFD)
Display color: Blue Green
Number of characters:
40 characters; 20 columns x 2 lines
Brightness: 500~1000 cd /m2
Character font: 5 x 7 Dot matrix
Character size: 9.0mm x 5.25mm
Character type:
I. 95 alphanumeric;
II. 32 sets of international characters: FRANCE、GERMANY、U.K、DENMARKI、SWEDEN、ITALY、SPAIN、JAPAN、NORWAY、DENMARKII、SLAVONIC、RUSSIA、Portuguese、Canadian French、Nordic、Turkish、Greek、West European Latin、CP858、CP860、WPC1252、CP857(TURKISH)、polish、wpc1250、wpc1253 （ GREEK ）、 wpc1255（ Hebrew ）、wpc1251 、CP866、CP852、CP737（DOSgreek）、CP858、CP864（Arabic）、Farsi（Iran）
●Interface
USB
RS232 (Serial)
●Reliability:
MTBF: 30,000 hours
●Power:
Power supply: DC 5V~24V DC
Power consumption: 3WAverage
Maximum 15W
●Dimension:
Head (W x D x H): 200 x 77.5 x 31 mm
Pole Dimension: Per support length:
140(L) x 34.5(Dia)mm
Base (W x D x H): 169.5 x 98.5 x39mm
Weight: N.W. 0.98kg
Viewing Angle : Max. 90°
Horizontal Rotation : Max. 355°
●Command Mode:
LD220, EPSON POS D101, AEDEX, UTC/S, UTC/P, ADM788, DSP800, CD5220, EMAX, LOGIC CONTROL
●Environment
EMC & Safety : CE/FCC Class B/RoHS
Operation Temperature : 10~40℃
Storage Temperature : -10~50℃
Operation Humidity : 0%~90% RH
Storage Humidity : 0%~90% RH
●Mechanical
Housing Color : Black
