The brochure of Birch thermal dirct rceipt printer (BP003) and dot matrix printer (BP007)


Birch BP-003 and SAM4S ELLIX20II

We like to position BP-003 not only price competitive thermal printer, but also offers more "Powerful" and "Durable" printer on the market. We like to offer below the comparison between Birch BP-003 and SAM4S ELLIX20II as example
SAM4S ELLIX20II
Birch BP-003
Mechanism
Plastic
Metal                                  ◎
Printing Speed
220mm/sec
220mm/sec
Resolution
180 dpi
203 dpi                               ◎
Characters per line
Font A: 42 columns
Font B: 56 columns
Font A: 48 column             ◎
Font B: 64 columns
Buffer Memory
4-64K
4MB                                   ◎
Interface option
LPT or RS232 or
USB or Ethernet
LPT or USB+ RS232 or      ◎
USB+ Ethernet
USB
1.1 (12 Mbps)
2.0 (480 Mbps)                   ◎
RS232
up to 115200
up to 115200
Ethernet
10 BaseT
10/100 BaseT                     ◎
Barcode
1D and PDF 417
1D, PDF 417 and QR code     ◎
Driver
Windows, OPOS
Windows, OPOS, Linux     ◎
Firmware upgrade
By replacing MB
User Upgradeable               ◎
Code page upgrade
By replacing MB
User Upgradeable               ◎


OEM and private label program

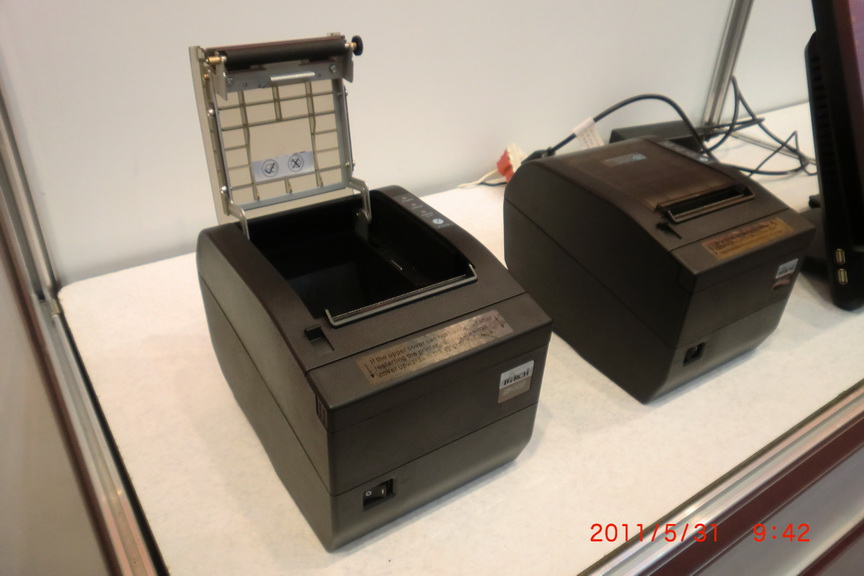

BP003: 220mm 3 inch thermal receipt printer




BP-003: 3" thermal direct receipt printer with Auto Cutter, 220mm/sec,LPT or USB 2.0+RS232 or USB 2.0+ Ethernet 10/100

1.) Rigid Mechanism in Metal
     ----Built with strong and rigid metallic internal mechanism, instead of plastic
     ----Built with metallic cover hinge instead of plastic hinge to lengthen the cutter life
     ----Finished module design to support Kiosk assembling

2.) Powerful Performance and Compatibility
     ----Built with 4MB buffer memory (normal receipt printer on the market just with 128K memory)
     ----Supports upgradeable firmware and font downloading at user's side(normal receipt printer on the market needs to replace the M/B to upgrade its firmware or font setting)
     ----Supports USB 2.0 full speed connection, instead of USB 1.0
     ----Supports Ethernet 10/100 Base T, instead of 10 Base T
     ----Fully supports Epson driver (allowed to use Epson TM-88III driver on BP-003 directly for RS232 and OPOS besides Birch driver)

3.) Other features
     ----Supports "Beep tone" setting via driver after each paper printing for kitchen application
     ----Built with Japanese-made SEIKO printer head and auto cutter
     ----Interchangeable interface cable and more 2-in-1 interface option
  • BP-003P: LPT port
  • BP-003U/BP-003R: USB 2.0+ RS232 interface, with USB or RS232 cable
  • BP-003N: USB 2.0+ Ethernet 10/100 interface, with LAN cable

AUX funtion omni direction laser scanner


The omni direction laser scanner is high promoteed by Meterlogic, symbol, datalogic. With the features of high sensitive and easy operation, the omni direction laser scanner has been more popular than ever.


We are glad to inform you BS370, the large screen omni direction laser scanner, 24 lines, 2,400 scan/sec.Support AUX function, which allow the user have the handheld scanner connected direct, they can work together.

Besides BS370, you are Will invited to consider BS360. It is compact size similar with meterlogic quantum. With the compact size, it could be as desk top scanner or handheld type scanner .  (Two way operation)

----BS360:Compact omni direction direction laser scanner, 24 lines, 2000 scan/sec.
